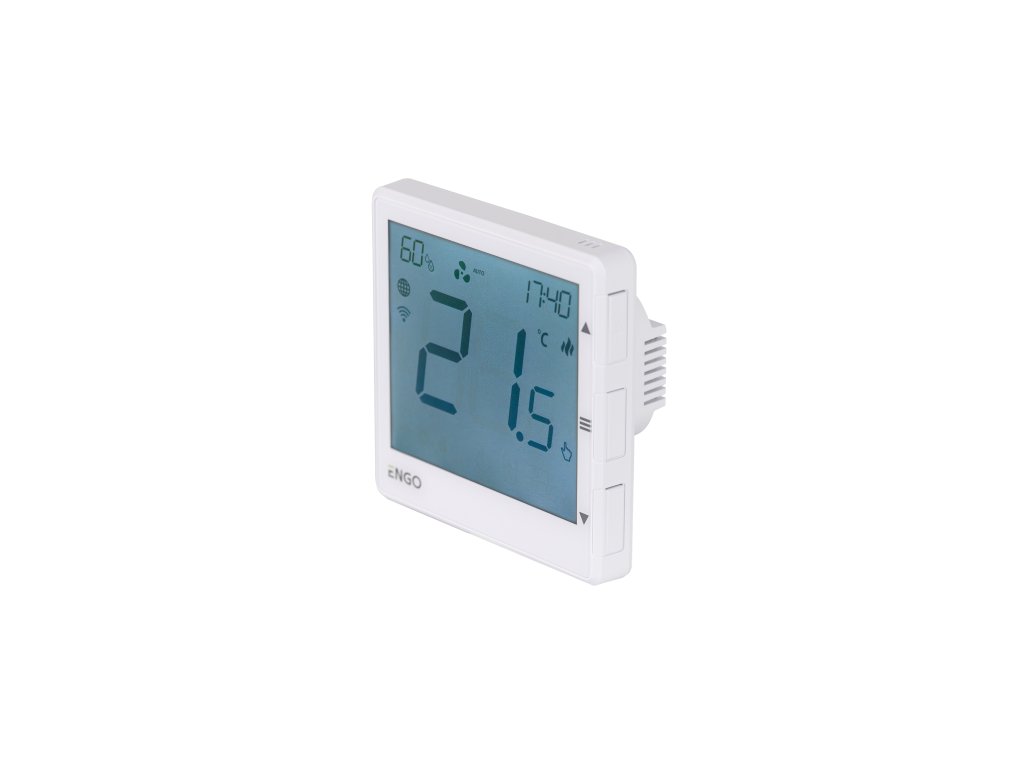

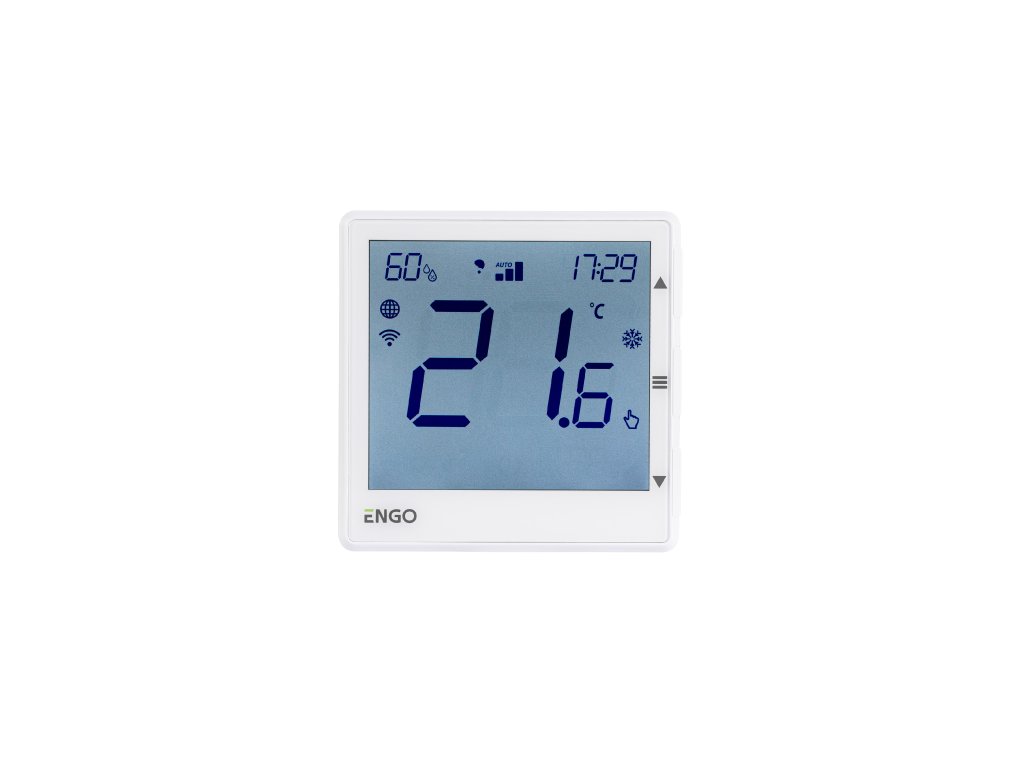

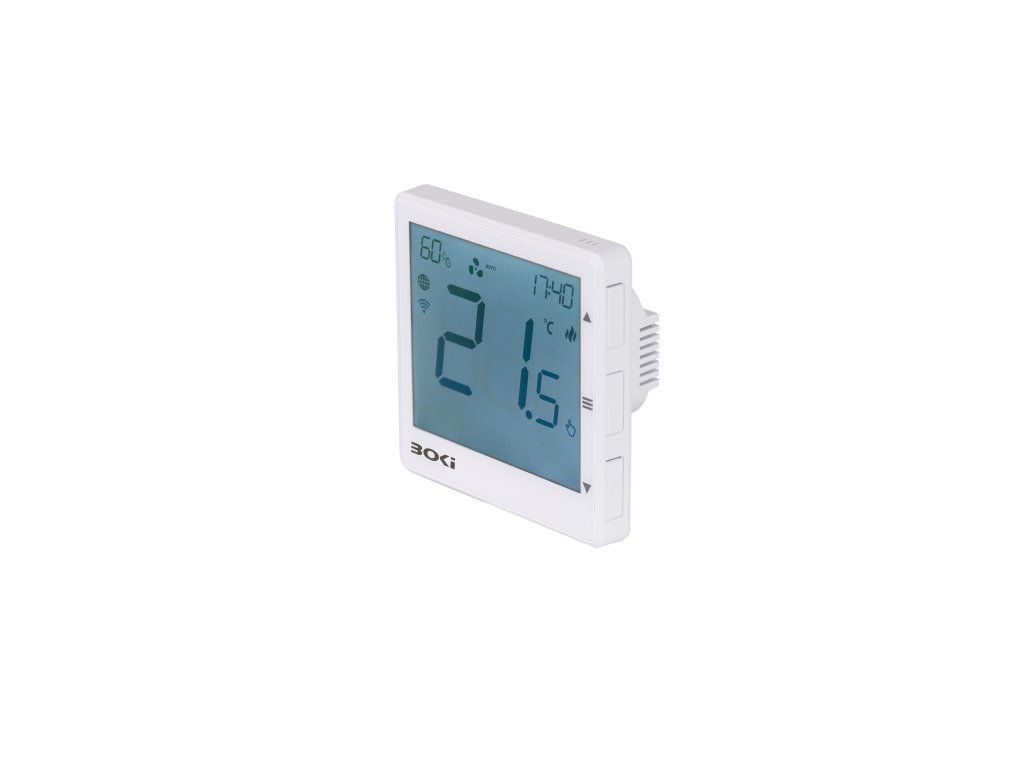

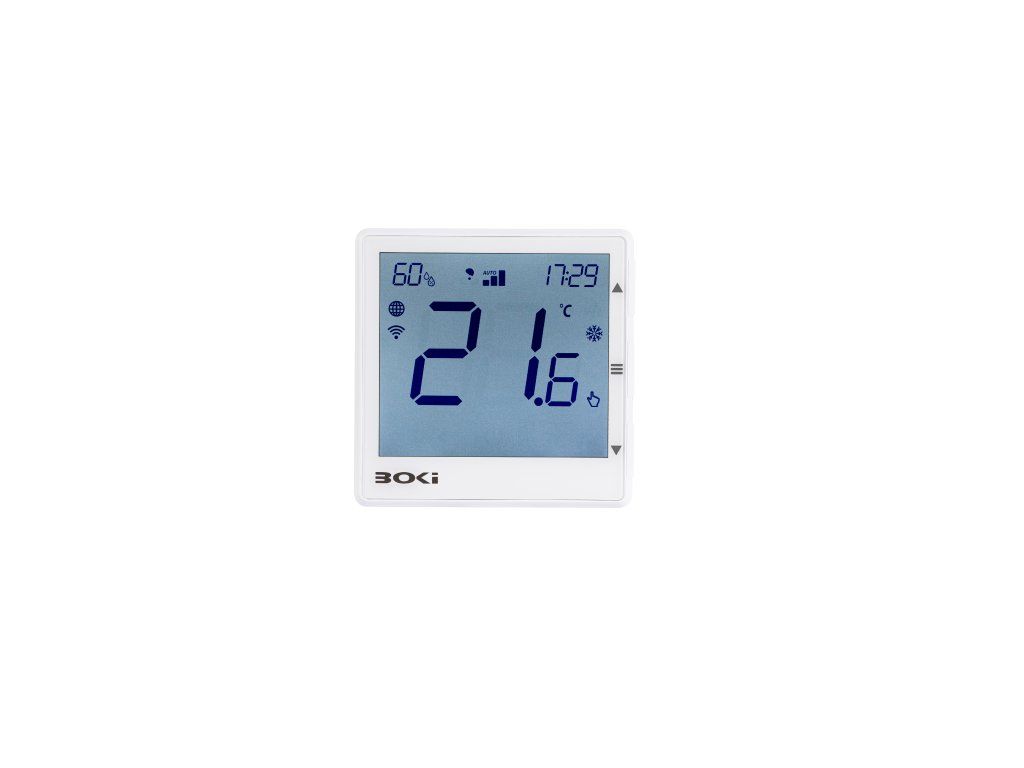

Room thermostat ENGO EFAN-24W
Digital room thermostat for F1S, F2C, F4C convector
Room thermostat for easy and quick room temperature control.
- Fan controller for flush mounting, Wi-Fi, 24 V
- for 2-pipe and 4-pipe fan-coil units with EC fans
- Control of a mixed system: cooling with fan coils and underfloor heating
- Manual or automatic 3-stage fan speed control

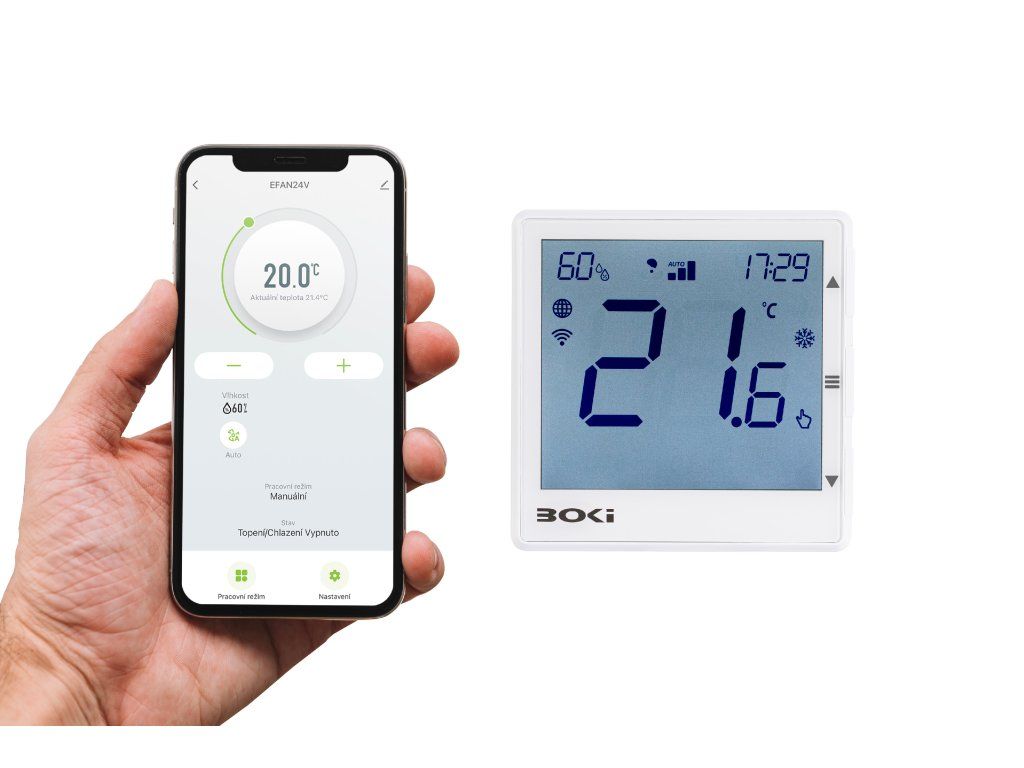

- Remote control via the ENGO Smart mobile app
- Communication: Wi-Fi 2.4 GHz and MODBUS RS-485 for system integration
- Memory retention after power outage
- EC fan control voltage 0 - 10 V DC
- Operating voltage 24 V DC
- Input 2 W
- Control of up to 20 electrothermal actuators RHE-22
- Temperature range 5-45 °C
This thermostat can only be connected with a 24 V voltage source (transformer).
The thermostat could be used with the following convectors: F1S, F2C and F4C
Additional parameters
| Category: | Accessories |
|---|---|
| Weight: | 0.4 kg |
| Colour: | white |
| Width: | 90 mm |
| Height: | 90 mm |
| Depth: | 44 mm |
| IP: | 30 |
